Product Name: | Anesthesia Machine | Color: | Optional |
---|---|---|---|
Feature: | LCD TFT Display | Apply For: | Children, Adults |
Warranty: | 1year | Function: | Oxygen Trace, Double Different Pressure |
High Light: | Portable universal anesthesia machine,Medical universal anesthesia machine,ge anesthesia workstation |

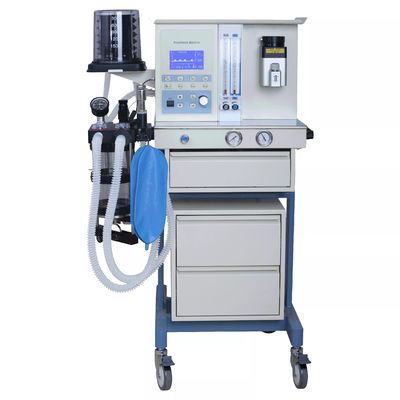

Anastesia Machine Medical Anesthesia Machine Portable Anestesia Machine
Product Name:
|
Hospital Anesthesia Medical Equipment
|
Application:
|
Adult and Children
|
Respiratory rate:
|
4~60bmp
|
Power Supply:
|
220V±10%,50Hz±1%
|
Working Mode:
|
For the Closed System, Semi-Closed System and Semi-Open System
|
Airway Pressure:
|
O2:0.3MPa--0.5MPa, N2O: 0.3MPa--0.5MPa
|
Oxygen Flush:
|
35L/min--75L/min
|
Respiratory Modes:
|
IPPV,SIGH ,SIMV/F/2, (Optional: PEEP(0.5kPa -- 2kPa), SIPPV(C))
|
Tidal Volume:
|
30~1500ml
|
Alarms Parameters:
|
Upper and Lower Airway Pressure Alarm; Upper and Lower Tidal Volume Alarm; Lack of Oxygen Alarm; Apnea; Power Outages
|
I/E Ratio:
|
3: 1-1:4 Adjustable
|
Vaporizer:
|
Two High Precise Vaporizers, scope of Concentration Regulation: 0.2 -- 5%VOL
|
Two Bellows:
|
One Adult Bellows, (Optional: One Children Bellows)
|
Monitoring Parameters:
|
Tidal Volume, the Respiratory Rate; I/E Ratio; the Peak Airway Pressure;
; Airway Pressure Waveform |
